Features:

* 2 wireless technologies available:
* 2.4GHz RF wireless
* Bluetooth wireless
* Removes clutter of wires
* Easy to clean and move around*2 wireless technologies available:
* Multiple systems can be used in close vicinity
* RF wireless use frequency-hopping spread spectrum (FHSS) RFID technology
* Transmitter powered by 4 (AA) batteries
* Long battery life

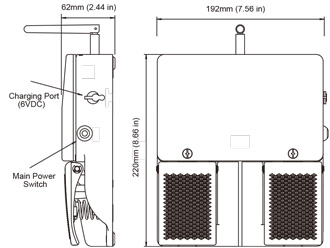

Installation dimensions:

Specifications:

Operating Speed:	60 ops/min
Insulation Resistance:	>100mW@500V DC
Contact Resistance:	<25mΩ (initial)
Rated Current/Voltage:	Receiver output 10A/250VAC
Service Life:	Mechanically 1 x10⁶ (operations)
Operating Temperature:	-30~+80°C (-22~176°F)
Protocols:	IEC802.15.1
Standards:	EN 300 328,V1.7.1, EN612326-1(2006); EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
Degree of Protection:	IP65 (IP68 available on request)

Operating Frequency:	60 ops/min
Insulation Resistance:	>100mW@500V DC
Contact Resistance:	<25mW (initial)
Rated Current/Voltage:	Receiver output 10A/250VAC
Service Life:	Mechanically 1 x106 (operations)
Operating Temperature:	-30~+80oC (-22~176oF)
Protocols:	IEC802.15.1
Standards:	EN 300 328,V1.7.1, EN612326-1(2006); EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1
Degree of Protection:	IP65 (IP68 available on request)
